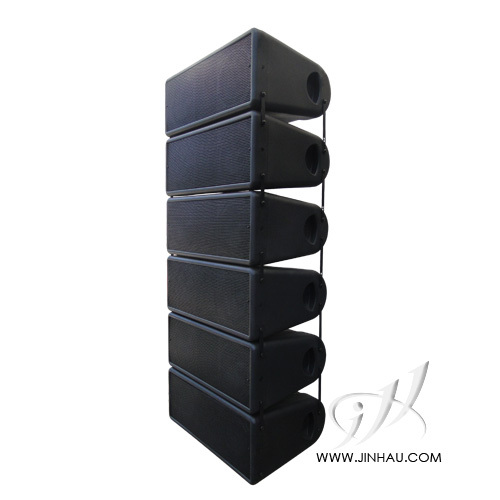

Enlarge Compact high performance Two-way line array enclosure

Compact high performance Two-way line array enclosure

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: W8LA

Compact, High performance Two-way line array enclosure

Features
  • Compact high performance Two-way line array enclosure
  • High power - maximum SPL 129 dB Continuous, 135 dB peak (single unit)
  • Superior bass impact - all horn design
  • Wide bandwidth - 75 Hz - 18 KHz +/- 3 dB(single unit)
  • True 90°(-6dB) horizontal mid and HF pattern control
  • Very smooth off-axis response - usable out to 120 degree(-10 dB)
  • Fast , integral rigging system with variable splay angles
  • Common grid may used for flying
  • Loudspeaker management preset files for a wide variety of configurations
Applications
  • Medium / large scale touring, theatre, stadia, club
Technical Specification
TYPETwo-way line array element
FREQUENCY RESPONSE(5)78Hz-18KHz +/-3dB
DRIVERS
2 x 8" (200mm) / 2" (51mm) voice coil,
HybridTM bass horn loaded
1" (25mm) Exit HF compression drivers,
Horn loaded
RATED POWER(2)LF: 125W AES, 500W peak
HF: 30W AES, 120W peak
SENTITIVITY(6)LF: 100 dB
HF: 106 dB
MAXIMUM SPLLF: 126 dB continuous, 132 dB peak
HF: 126 dB continuous, 132 dB peak
NOMINAL IMPEDANCELF: 8 Ohm
HF: 8 Ohm
DISPERSION(-6dB)90° horizontal, 7.5° vertical
120° horizontal @ -10 dB
CROSSOVER2000 Hz active
ENCLOSUREVertical trapezoid with 3.75 degree wall angle, multi-laminate birch ply construction
FINISHTextured black paint
PROTECTIVE GRILLEBlack perforated steel
CONNECTORS2 x Neutrik NL4
FITTINGSProprietary rigging system
DIMENSIONS(W)700mm x (H)270mm x (D)450mm
(W)27.5ins x (H)10.6ins x (D) 17.7ins
WEIGHT17.45 kg(38.4 lbs)
